Product

Android interface for NISSAN 2010-2017 GT-R with 8" touch display (575)
  • Brand:Lsailt
  • Place of Origin:Shenzhen China
  • Model:LLT-GTR-VER5.7.5
  • Car model:GT-R

Special Function

MCU and APP Update:

Connect WIFI Using Internet

Cold start Time:

40 seconds

Hot Start:

6 seconds

Sleep:

Yes(Loop 5 times)

Sleep memory

Remember Last APP in parking

Installation Method

Plug and Play

Switching Method

Switch Mode:

Use the steering wheel SOURCE button to Choose IPOD

Switch Mode1:

Use original car radio or other screen: Long press the BACK

 for 3 seconds to switch Android

Switch Mode2:

Use panel FM and AUX button to Switch

Body Multimedia Control

Microphone:

Use original car

Steering Wheel

Support up and down song, Vol

Forced Reset

MODE and Up Song Long press 5 seconds

Original Car BT in Android:

Caller ID 10 seconds to automatically return to Android current APP

A/C DISP

Support in the Android interface display

Speed Control:

Add CAM 25 km Effective

CarPlay(Optional)

Way of use

Wired and wireless

Logo

Can be modified

Operating

Touch and knob and steering wheel

Siri

Use the panel voice button to wake up SIRI on the CARPLAY screen

Installation

USB

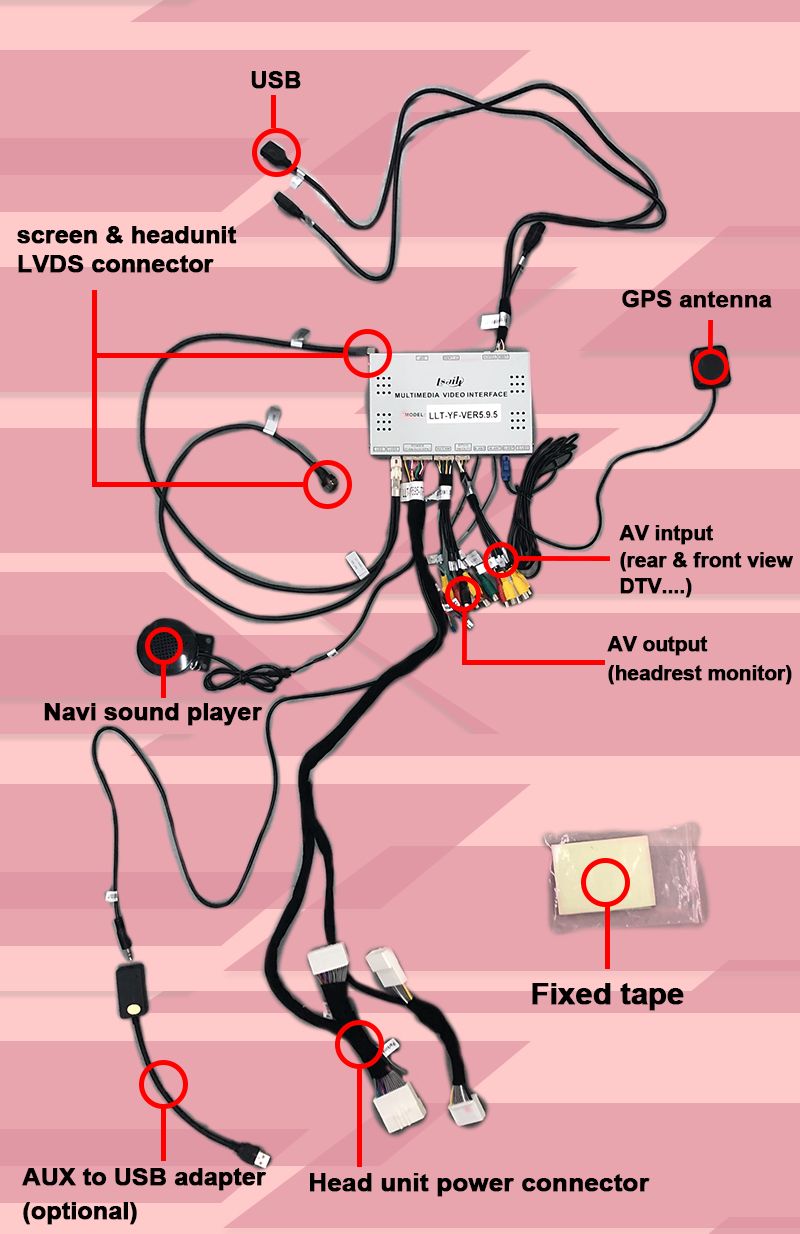

Product Acessories

Android Host

1 set

LVDS Cable

1 set

Power Cable

1 set

USB Cable

1 set

CAM Cable

1 set

AV IN Cable

1 set

Small SPK

1 set

GPS AND

1 set

3M Glue

2 set

Android Configuration

Resolution

800X480

Display

LVDS Digital

SYSTEM:

Android

RAM:

3GB

EMMC:

32GB

CPU MODEL

T7

WIFI:

Yes

BT:

Yes

MirrorLink:

Android and IOS

Play Store:

Yes

Youtube:

Yes

Hardware Configuration

TF Card :

Maps

Navi Sound

Need add small speakers

AV IN:

DTV and AVI

V OUT:

V and V1

Camera:

F/R/L/R (4 CAM)

Use Operation:

Touchsreen and KNOB
