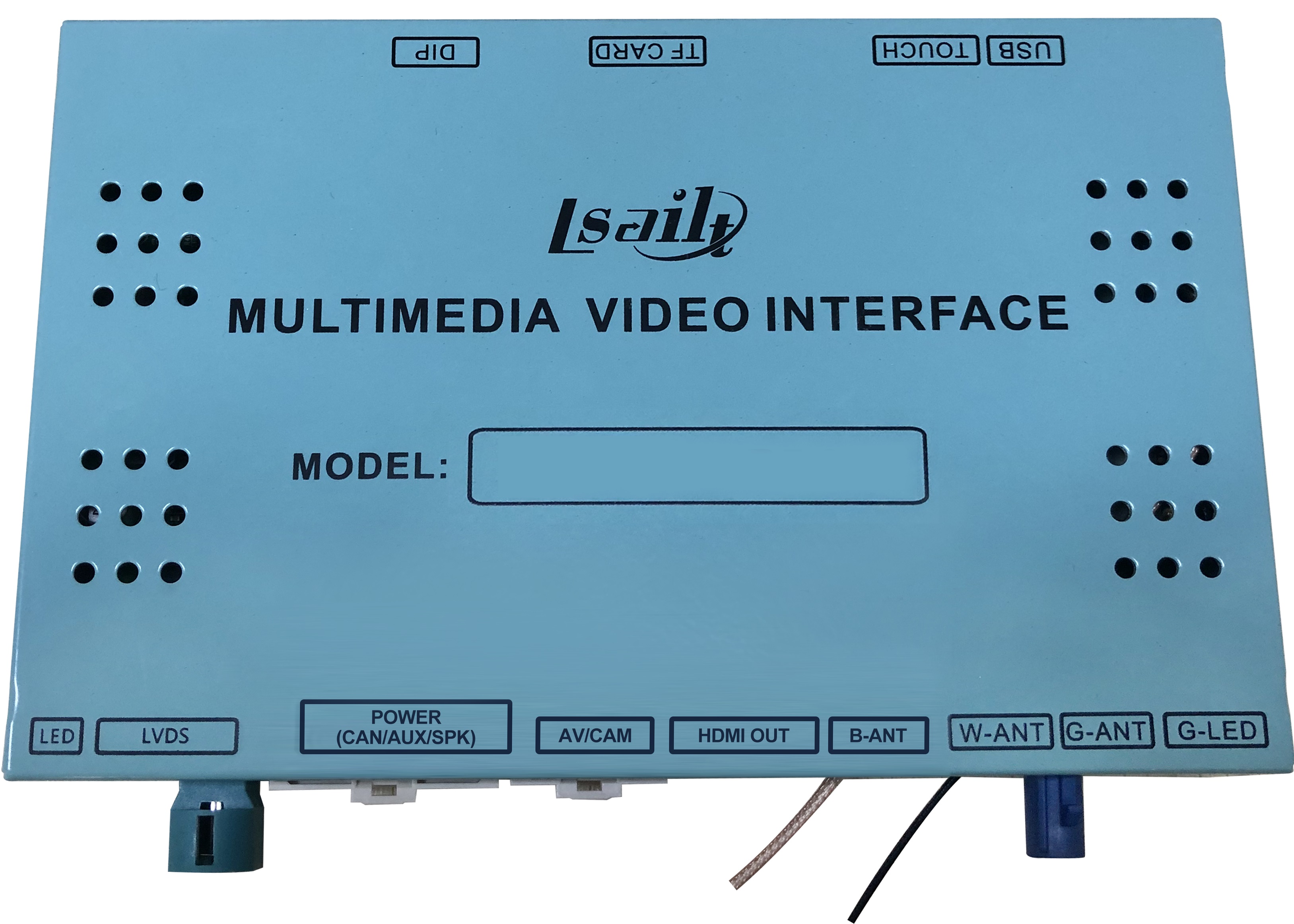

Product

- Brand:Lsailt
- Place of Origin:Shenzhen China
- Model:LLT-YFI-VER5.8.5
- Car model:INFINITI 2015-2019 Q50 2019 QX80 NISSAN 2018- QUEST 2018- PATROL 2019 Pathfinder 2018- 270Z 2019 armada
Android Configuration
Android Configuration |
|
Resolution |
800X480 |

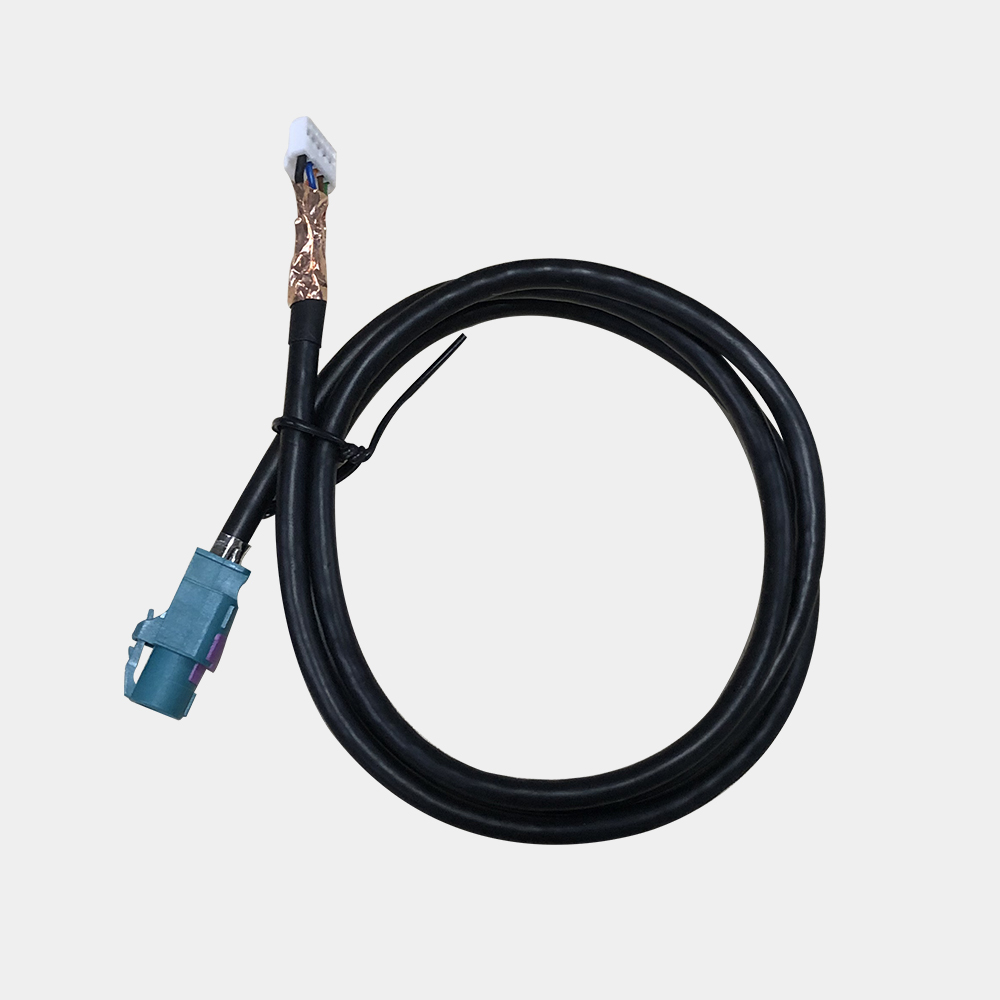

Display |
LVDS Digital |
SYSTEM: |
Android 7.1/9.0 |
RAM: |
2GB/3GB |
EMMC: |
32GB |
CPU MODEL |
T7 |
WIFI: |
Yes |
BT: |
Yes |
MirrorLink: |
Android and IOS 12 |
Play Store: |
Yes |
Youtube: |
Yes |
Hardware Configuration |
|
TF Card : |
Maps |
Navi Sound |

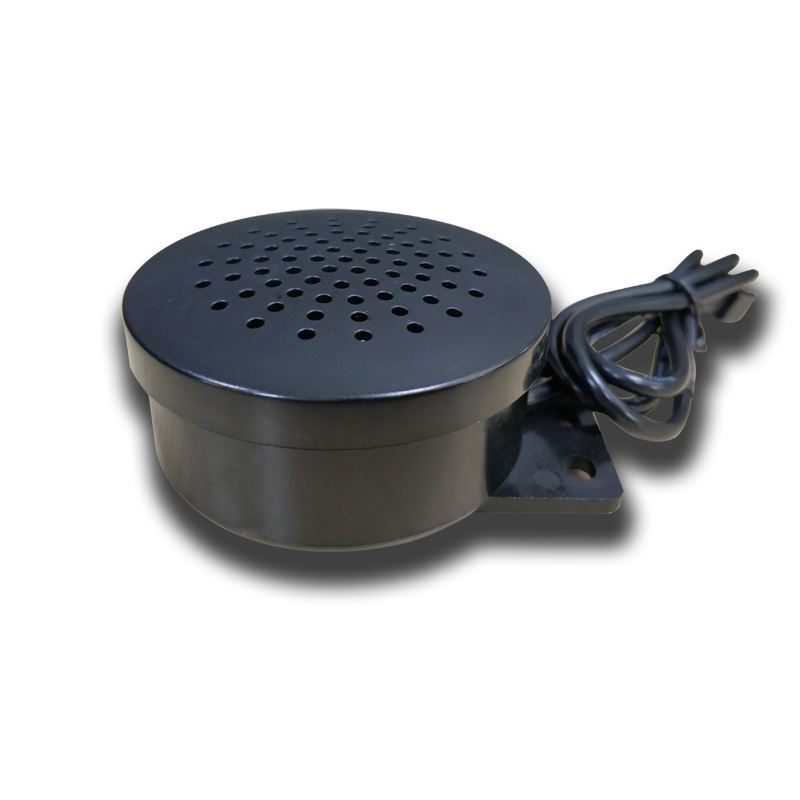

Need add small speakers |

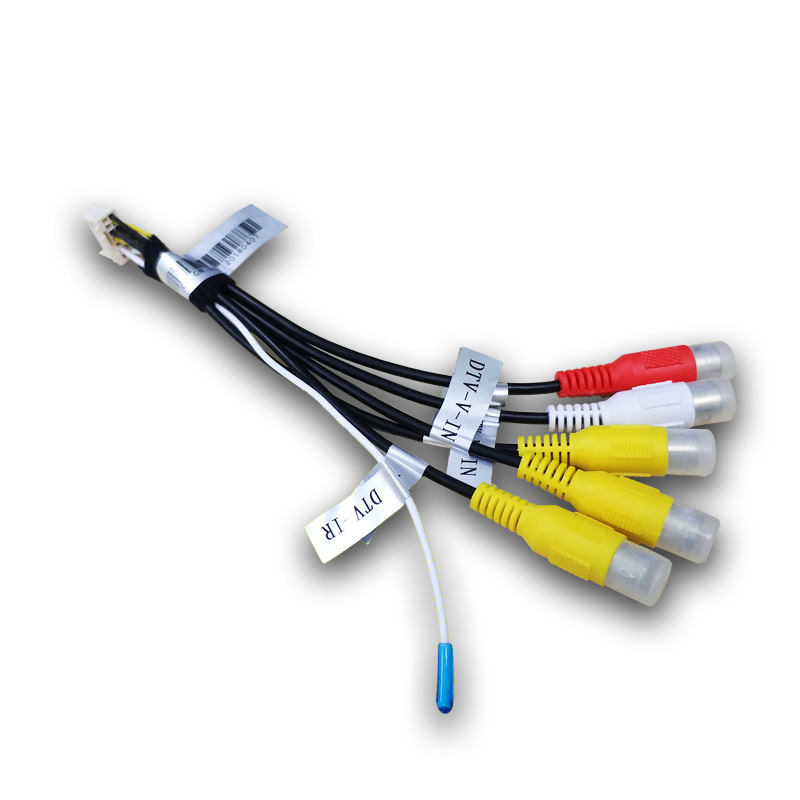

AV IN: |
DTV |
V OUT: |
V and V1 |
Camera: |
F/R(CVBS/AHD)/3D 360 CAM(guideline and radar ) |
Use Operation: |
Touchsreen and KNOB |
Special Function |
|
MCU and APP Update: |
Connect WIFI Using Internet(连接WIFI使用互联网更新) |
Cold start Time: |
40 seconds |
Hot Start: |
6 seconds |
Sleep: |
Yes(Loop 5 times) 循坏5次重启一次 |
Sleep memory |
Remember Last APP in parking(记忆停车操作最后一个APP) |
Installation Method |
Plug and Play |
Switching Method |
|
Switch Mode: |
Use the steering wheel ok button to Choose AUX or USB-AUX (使用方向盘OK 按键选择AUX或者USB-AUX) |
Switch Mode1: |
In radio or other screen select AUX automatically switch android(在收音机或其它原车界面,选择AUX 自动切换安卓,(声音图像同步) |
Switch Mode2: |
Use original car radio or other screen: Long press the BACK for 3 seconds to switch Android.(收听原车收音机或其它画面,长按返回健3秒切换安卓) |
Switch Mode3: |
Use panel media button to cycle through Switch (使用面板媒体按键循环切换) |
Body Multimedia Control |
|
Microphone: |
Use original car |
Steering Wheel: |
Support up and down song, Vol(支持上下曲选择,音量控制) |
Forced Reset |
MODE and Up Song (Long press 5 seconds) |
Original Car BT in Android: |
Caller ID 10 seconds to automatically return to Android current APP(来电显示10秒自动返回安卓当前APP) |
A/C DISP |
Support in the Android interface display(支持在安卓界面显示) |
Speed Control: |
Add CAM 15 km Effective(添加摄像机15KM以下有效) |
3D 360 Camera |
|
Optical Lens 光学镜头 |
|
Sensor Size 镜头尺寸 |
1/3" |
Optigal Diagonal 角度 |
H=190°,V=123° |
Focal Length 焦距 |
F=1.5 mm |
Imaging Component 成像组件 |
|
Camera Device |
1/3’ SONY IMX225 130W CMOS |
Video Format视频制式 |
PAL / NTSC |
Clear pixel 像素 |
PAL:1280(H)X960(V) / NTSC:1280(H)X960(V) |
Minimum Illumination 最低照明度 |
0.001LUX / F1.2 |
Horizontal Resolution |
AHD: 1.3 million pixels 960P |
Video Out |
1.0V p-p AHD |
Operating Temperature |
-40℃ - +80 ℃ |
Working Humidity |
Relative humidity below 90% |
Working Power |
DC3.5V~6V (±10%) |
360 Feature Configuration |
|
Resolution |
800X480 and 1280X480 and 1280X720 |
Video Storage Path |
USBA/B/C Set any of them |
Video Playback |
360 CAM APP or video player |
360 Brightness |
Support |
360 Start |
AUTO |
2D/3D |
Support |
360 Operation |
Touchpad, Mouse, Knob |
Radar and Guideline |
Support |
Radar obstacles, start 360 |
Support |
Speed Control 360 |
Support 此功能待确认 |
360 Installation |
Plug and Play / Universal camera needs to be opened |
Forced Start Switch |
待确认 |

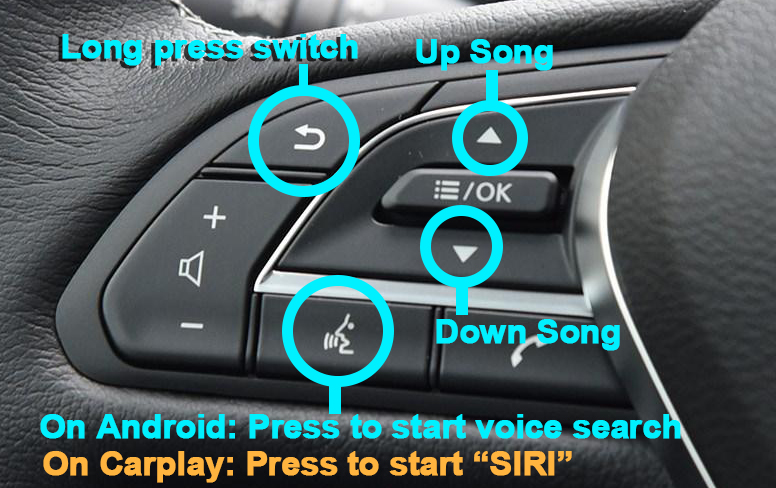

Steering wheel function description For Q50

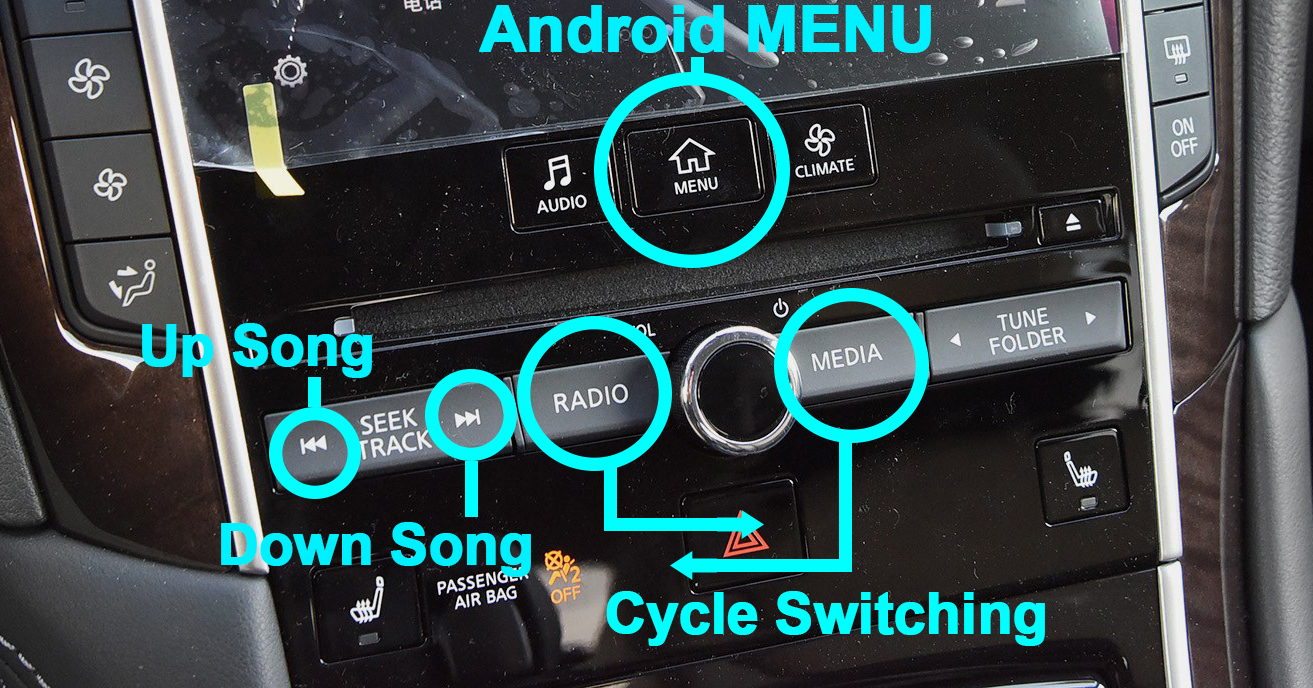

Press function description For Q50
